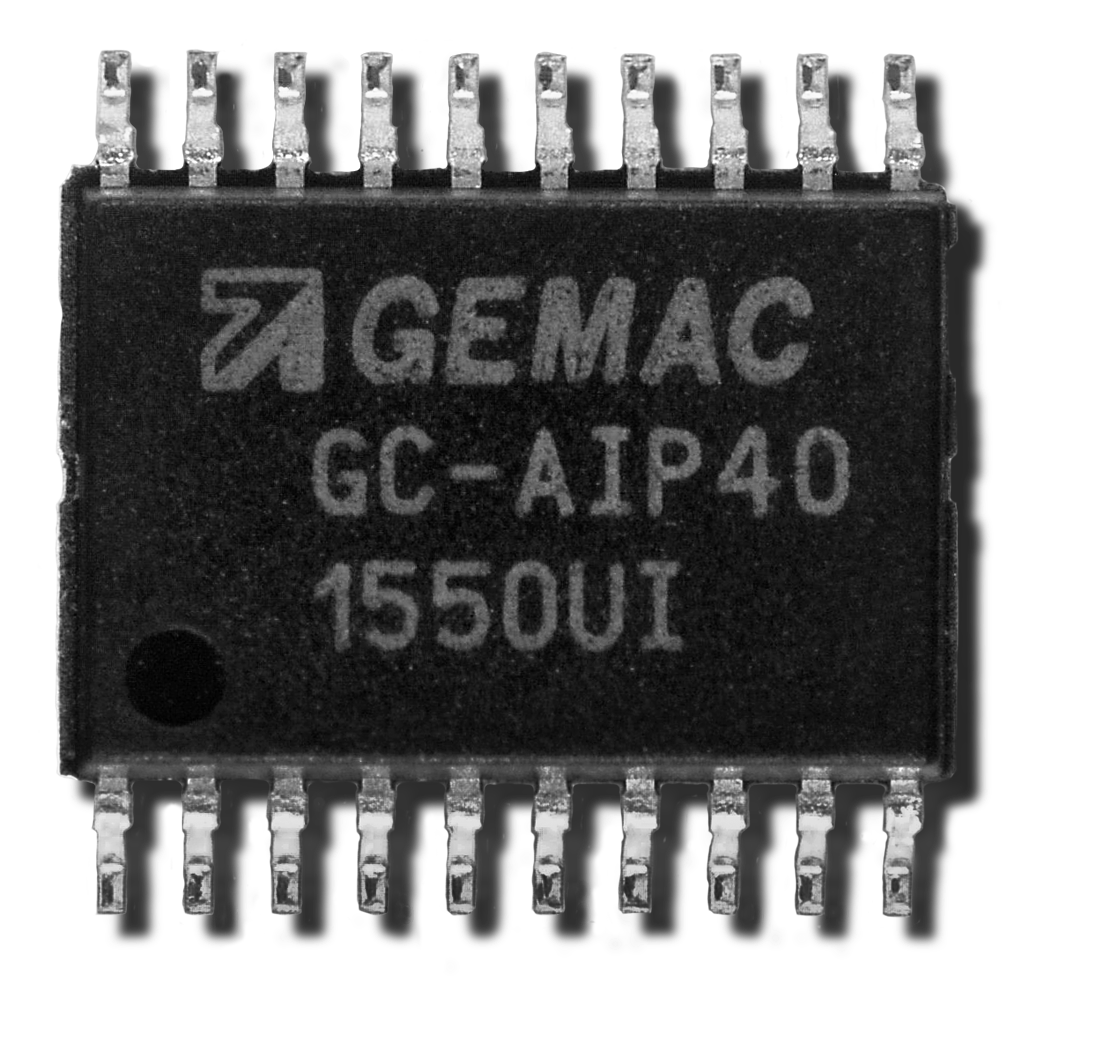

Interpolation Circuit GC-AIP40

amac logo v4 dunkel


The interpolation circuit GC-AIP40 is used to increase the resolution of incremental position and angle measuring systems with sinusoidal output signals phase-shifted by 90°. The IC is suitable for sensors with a standardized voltage or Power interface, as well as for the direct connection of photodiode arrays and sensor measuring bridges. An adjustable minimum edge separation at the output as well as programmable analog and digital hysteresis enable the IC to be used even with disturbed input signals.

Technical Data



Input signals
Sine / cosine / reference signal
differential / single-ended
Adjustable gain for 1Vpp / 660mVpp / 530mVpp / 80mVpp
Maximum 1.2MHz for interpolation rates ≤ 20
Maximum 750kHz for interpolation rate = 32
Maximum 600kHz for interpolation rate = 40
Interpolation rates
40 / 32 / 20 / 16 / 8 / 4 Edges per sine period
Zero signal processing Adjustable width of the reference signal at the output
Configuration Configuration pins
Interference suppression Adjustable hysteresis analog
Adjustable hysteresis digital
Adjustable minimum edge separation at the output
Output signals
90°-square wave (A/B/Z); TTL- and CMOS-compatible
Gehäuse: TSSOP20

Downloads

Infosheet

mime pdf

Datasheet

mime pdf



Orderinformation

 Product type Description Article number
GC-AIP40 Interpolation circuit GC-AIP40, RoHS
PR-43800-50
GC-AIP40-DIE Interpolation circuit GC-AIP40, RoHS, DIE PR-43800-06
GP40 Demoboard for GC-AIP40, RoHS PR-43810-00
